M500SF Freezer Chest
M500SF freezer chest with combined aluminum profile — professional freezing equipment designed for storing and selling ice cream, semi-finished products, and frozen foods. The distinctive feature of this model is an improved crown structure and enhanced glass sealing, ensuring reliable chamber tightness. The equipment is fitted with angled glass and energy-saving LED lighting built into the crown that does not occupy additional volume, allowing unobstructed product loading. The wide color range of plastic allows you to accurately match the equipment to the style of your retail location. The equipment is energy-efficient and operates reliably at ambient temperatures up to +35°C.
Options:
- advertising lightbox
- bimetallic thermometer
- electronic thermostat
- branding of any complexity
- body painting in custom color
Freezing equipment must not be installed under direct sunlight or other atmospheric influences
All products are certified in the UkrSEPRO system.
JUKA-Invest LLC reserves the right to make design changes to improve product characteristics without prior notice to the customer.

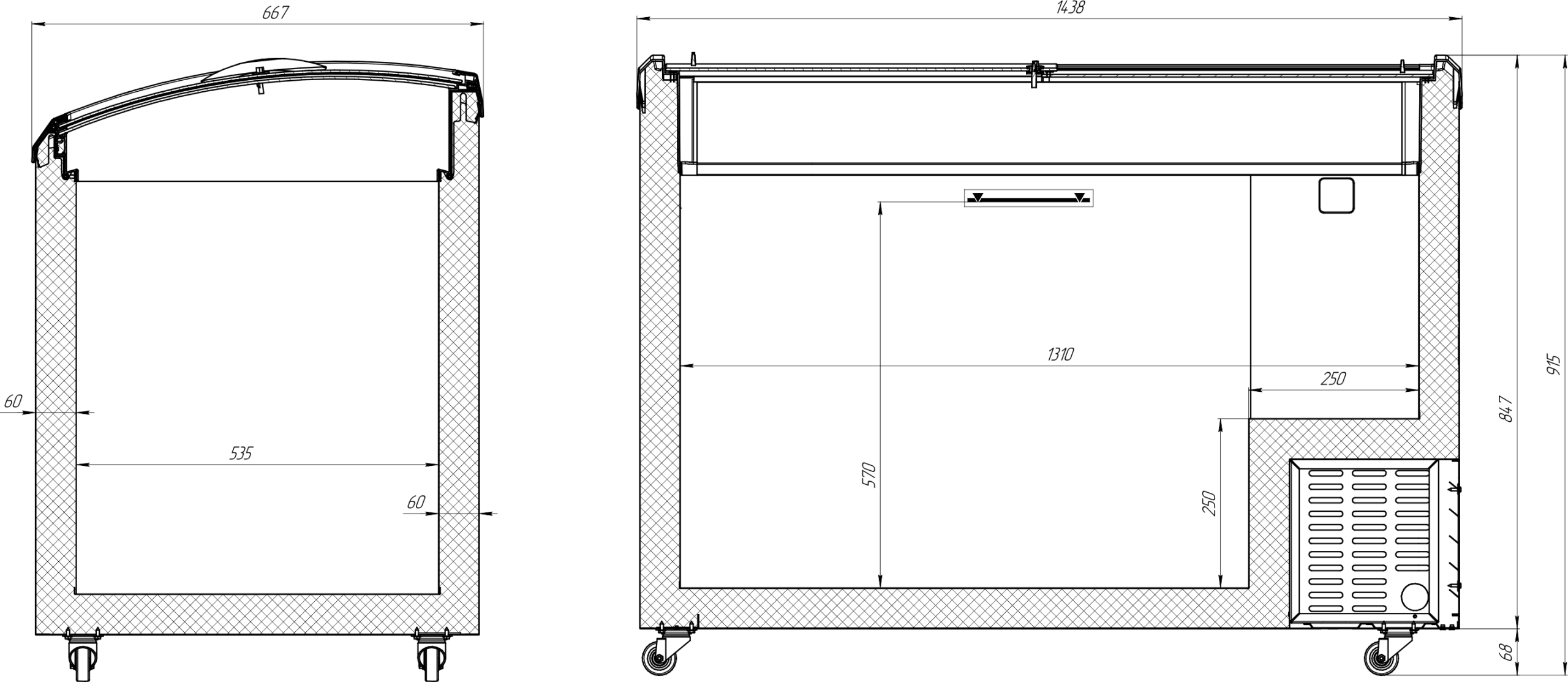

Dimensions
Length
1438 mm
Width
667 mm
Height
916 mm
Freezer chest weight, net
72 kg
Technical details
Total volume
490 dm³
Usable volume
366 dm³
Recommended ambient temperature
+16...+35°C
Operating temperature range
-14...-23°C
Climate class
7
Refrigerant
R404a / R452a / R290 / R290*
CO₂
0.86 t / 0.47 t / 0.00 t / 0.00 t
Refrigerant quantity
0.22 kg / 0.22 kg / 0.075 kg / 0.075 kg
Power supply voltage
220-240/50 V/Hz
Rated current
2.0 / 2.0 / 1.6 / 0.9 A
Power consumption (at 25°C)
4.0 / 4.0 / 3.3 / 2.65 kW/24 hours
Temperature controller
electromechanical
Baskets
6 pcs
Maximum load per basket
10 kg
Lock
included
* - energy-saving version
R290*
