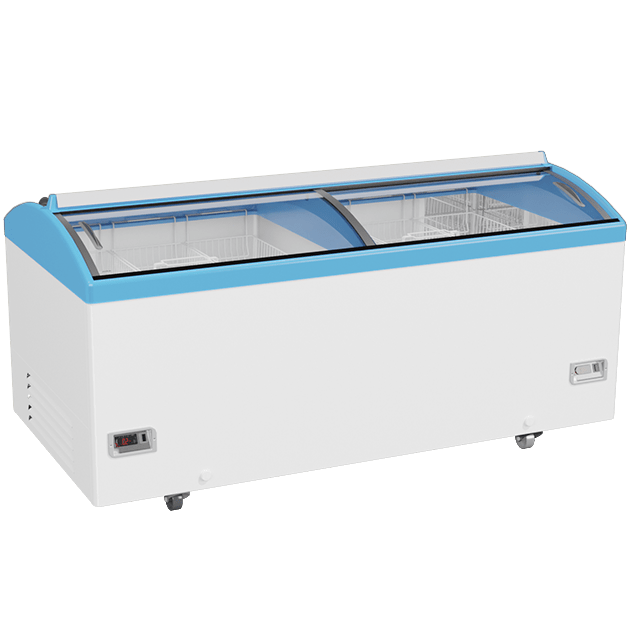

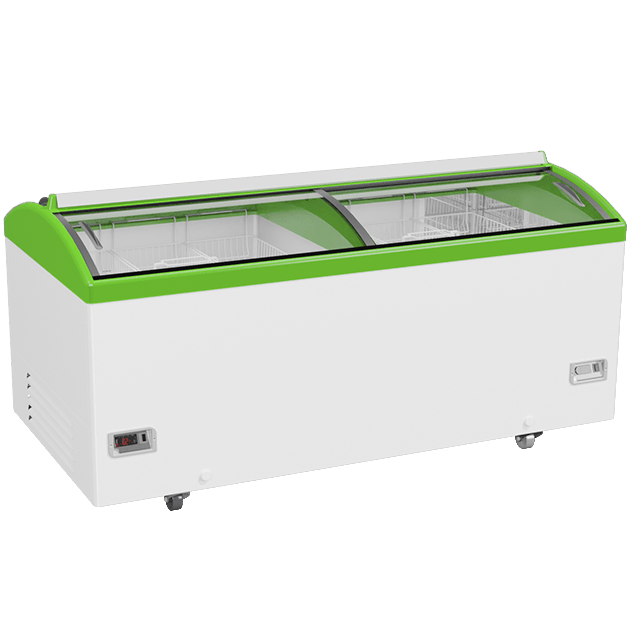

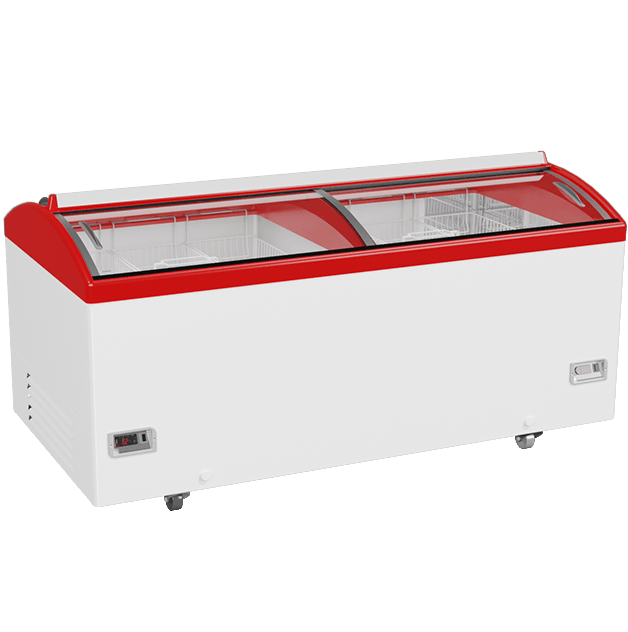

Universal boneta M1000S

M1000S The latest generation of universal bonnet opens up the new opportunities for food retail with lack of sales area or food manufacturers with large assortment of foodstuff with requirements of preserving it in different temperature zones. We combined for them the room for merchandising and selling of both chilled and frozen food in one refrigeration unit. The main zest of the model is two separate compartments operating on independent cooling circuits with two compressors. The advantages of this product are low investments and operating costs, all round access to the food storage compartments, temperature indication and regulation within specified regimes on the central panel, as well as environmentally friendly refrigerant.

Options:

  • storage metal shelving
  • branding of any complexity
  • cabinet body painting in individual colour
  • protective bumpers on the cabinet of the unit
  • double sided price holder on top of the freezer

* All goods are certified by UrkSEPRO system.
** JUKA-Invest Ltd has a right to make constructive changes in order to improve the characteristics of products without prior notice to the customer.

Dimensions
Length
2001 mm
Depth
1001 mm
Height
1014 mm
Net weight
140 kg
Technical details
Gross volume
1062 dm³
Net volume
764 dm³
Ambient temperature range
+16...+35°C
Climate class
7
Two compartments
-14°C÷-23°C
*Refrigerant
R404a
CO₂
0,63t | 0,63t
Refrigerant quantity
0,16kg | 0,16kg
Nominal current consumption
3,5 А
Current consumption is taken at 25°С
7,1 kWt/24 h
*Refrigerant
R452a
CO₂
0,34t | 0,34t
Refrigerant quantity
0,16kg | 0,16kg
Nominal current consumption
3,5 А
Current consumption is taken at 25°С
7,1 kWt/24 h
*Refrigerant
R290
CO₂
0,00t | 0,00t
Refrigerant quantity
0,075kg | 0,075kg
Nominal current consumption
3,2 А
Current consumption is taken at 25°С
6,7 kWt/24 h
*Refrigerant
R290**
CO₂
0,00t | 0,00t
Refrigerant quantity
0,075kg | 0,075kg
Nominal current consumption
1,7 А
Current consumption is taken at 25°С
5,7 kWt/24 h
Two compartments
+5°C÷-5°C
*Refrigerant
R290***
CO₂
0,00 t | 0,00 t
Refrigerant quantity
0,09kg / 0,09kg
Nominal current consumption
1,5 А
Current consumption is taken at 25°С
3,5 kWt/24 h
One compartment -14°C÷-23°C
One compartment +5°C÷-5°C
*Refrigerant
R290
CO₂
0,00 t
Refrigerant quantity
0,075kg | 0,09kg
Nominal current consumption
2,4 А
Current consumption is taken at 25°С
5,3 kWt/24h
Voltage / frequency (general)
220-240/50 V/HZ
Temperature controller
electronic
Baskets
6 pcs
Maximum load for 1 basket
15 kg
* - refrigerant type influences the technical data
.
** - energy-saving version for
-14°C÷-23°C
*** - energy-saving version for
+5°C÷-5°C
