M400SF+

M400SF+ Freezer Chest with combined aluminum profile — professional freezing equipment designed for storage and sale of ice cream, semi-finished products, and frozen foods. The distinctive feature of this model is the improved crown design and enhanced glass sealing, which ensures reliable chamber tightness. The equipment is fitted with angled glass and energy-saving LED lighting built into the crown that does not occupy additional volume, allowing unobstructed product loading. The wide color range of plastic allows you to accurately match the equipment to the style of your retail location. The equipment is energy-efficient and operates reliably at ambient temperatures up to +35°C.

The model with the “+” suffix has an improved energy efficiency class due to increased wall thickness and an intelligent control unit with temperature display in the standard configuration

Options:

  • advertising lightbox
  • bimetallic thermometer
  • electronic thermostat
  • branding of any complexity
  • body painting in custom color
Freezing equipment must not be installed under direct sunlight or other atmospheric influences
All products are certified in the UkrSEPRO system.
JUKA-Invest LLC reserves the right to make design changes to improve product characteristics without prior notice to the customer.

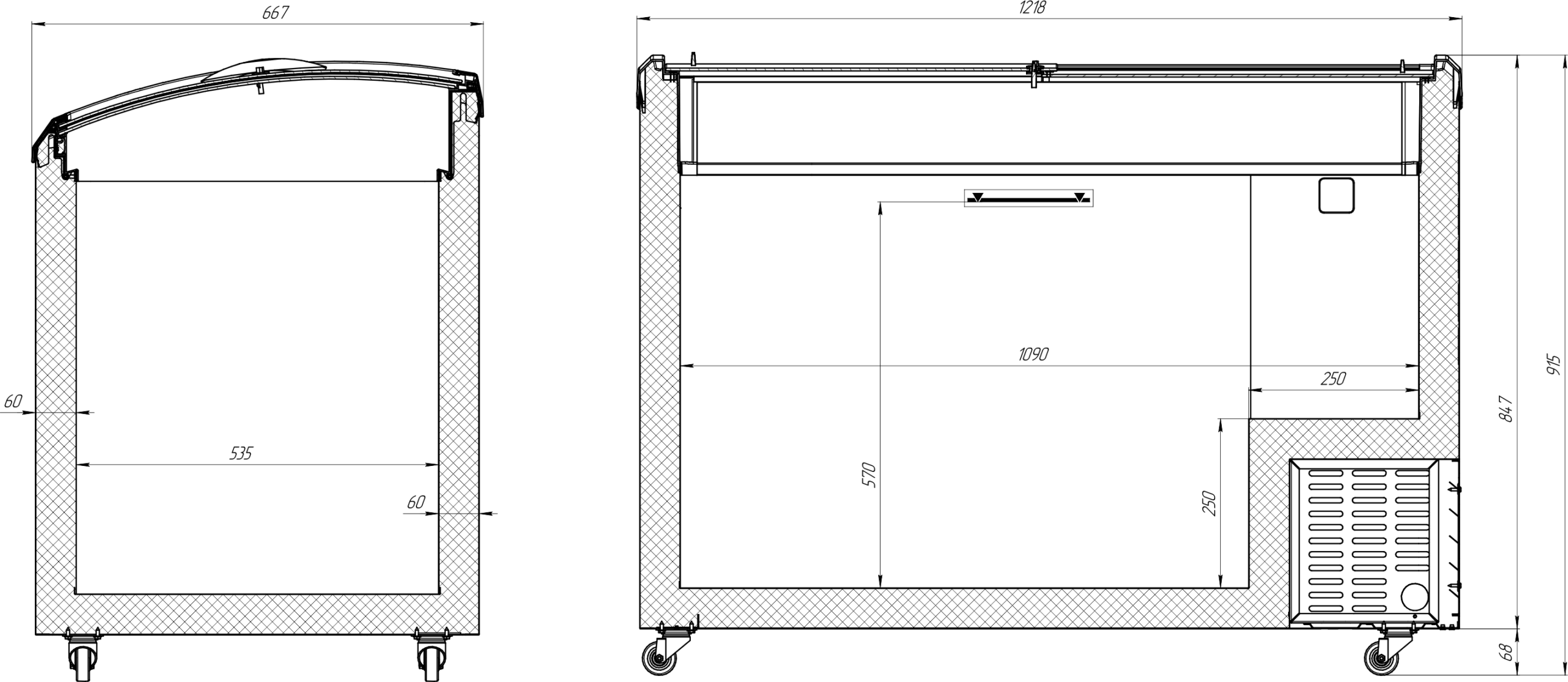

Dimensions
Length
1218 mm
Width
667 mm
Height
956 mm
Freezer chest weight, net
63 kg
Technical details
Total volume
387 dm³
Usable volume
288 dm³
Recommended ambient temperature
+16...+40°C
Operating temperature range
-14...-23°C
Climate class
7
Refrigerant
R404a / R452a / R290 / R290*
CO₂
0.63 t / 0.34 t / 0.00 t / 0.00 t
Refrigerant Quantity
0.16 kg / 0.16 kg / 0.075 kg / 0.075 kg
Power supply voltage
220-240/50 V/Hz
Rated current
1.6 / 1.6 / 1.5 / 0.8 A
Power consumption (at 25°C)
3.1 / 3.1 / 2.6 / 1.95 kW/24 hours
Temperature controller
electromechanical
Baskets
5 pcs
Maximum load per basket
10 kg
Lock
included
* - energy-saving version
R290*
